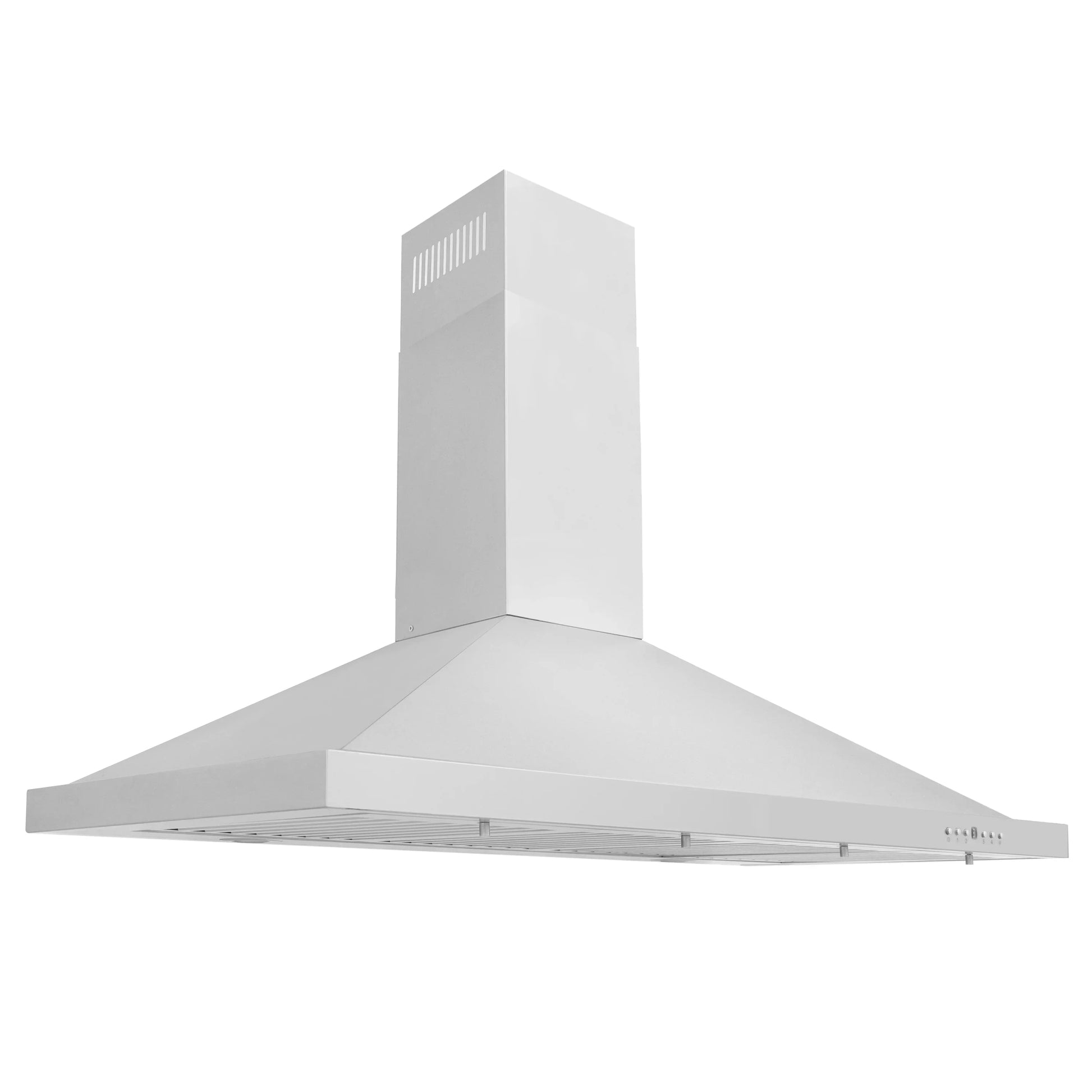

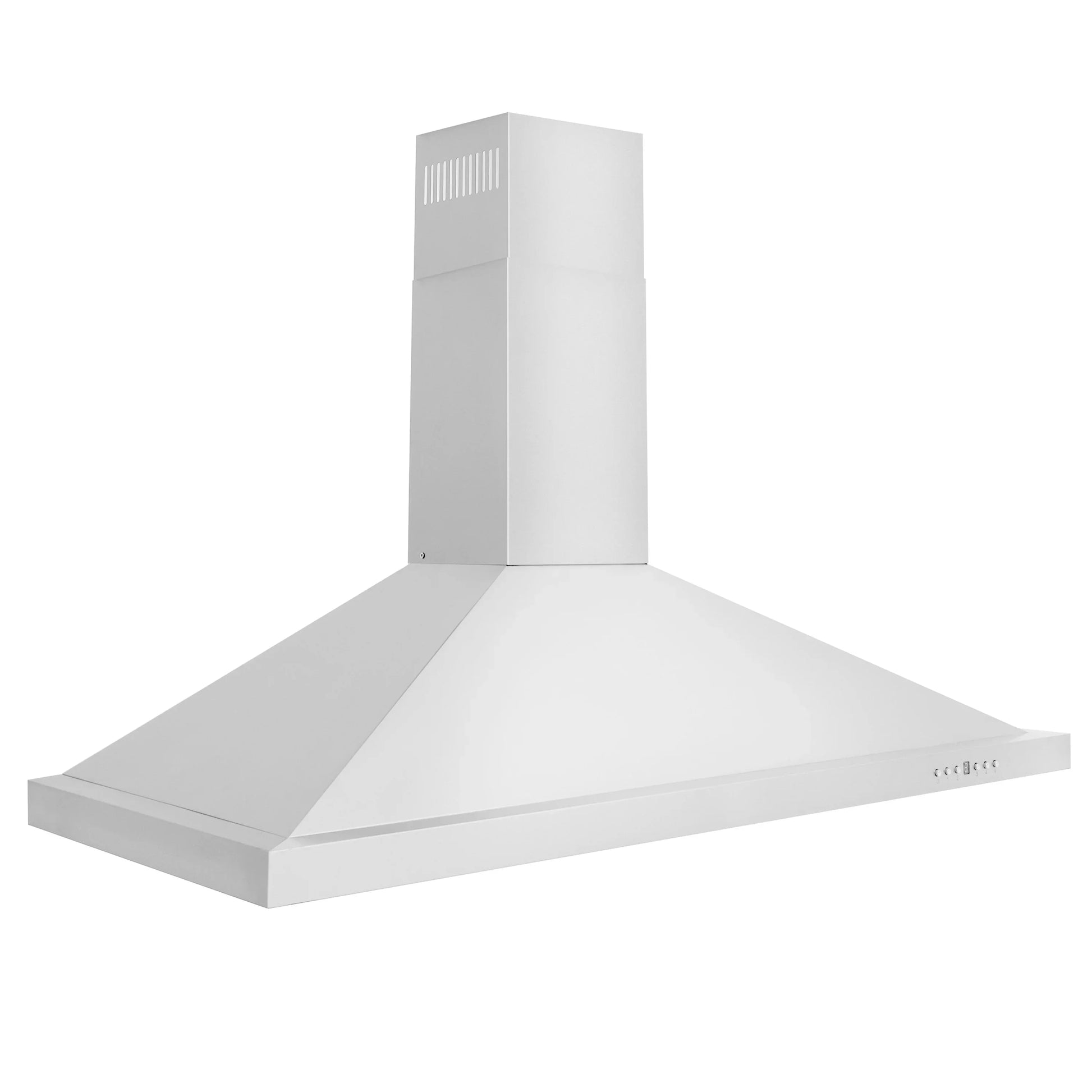

ZLINE 48 in. Wall Mount Range Hood Stainless Steel Convertible Vent 4-Speed KB-48

The ZLINE KB-48 is a 48-inch wall mount range hood designed for indoor kitchen ventilation. Constructed from 430-grade stainless steel, it provides durability and resistance to corrosion while maintaining a clean, modern appearance. This model features a 4-speed motor with a maximum airflow of 400 CFM, helping to remove smoke, steam, and cooking odors efficiently.

The hood supports both ducted and ductless (recirculating) installation. For ductless use, compatible charcoal filters (CF1, sold separately) are required. It includes two telescoping chimney sections to fit standard ceiling heights, with optional extension kits available for shorter or taller ceilings.

Integrated LED lighting and dishwasher-safe stainless steel baffle filters provide added functionality and ease of maintenance.

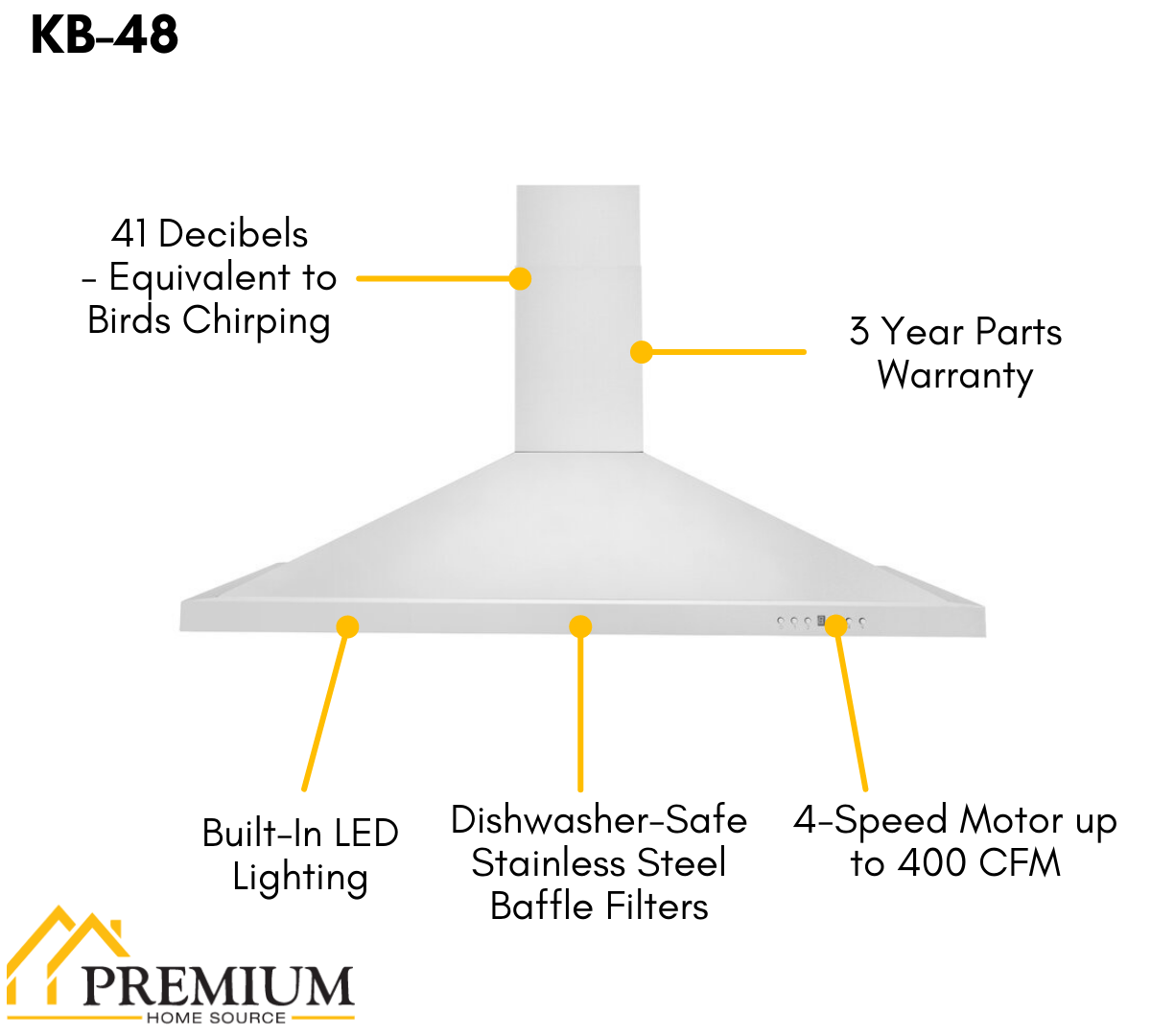

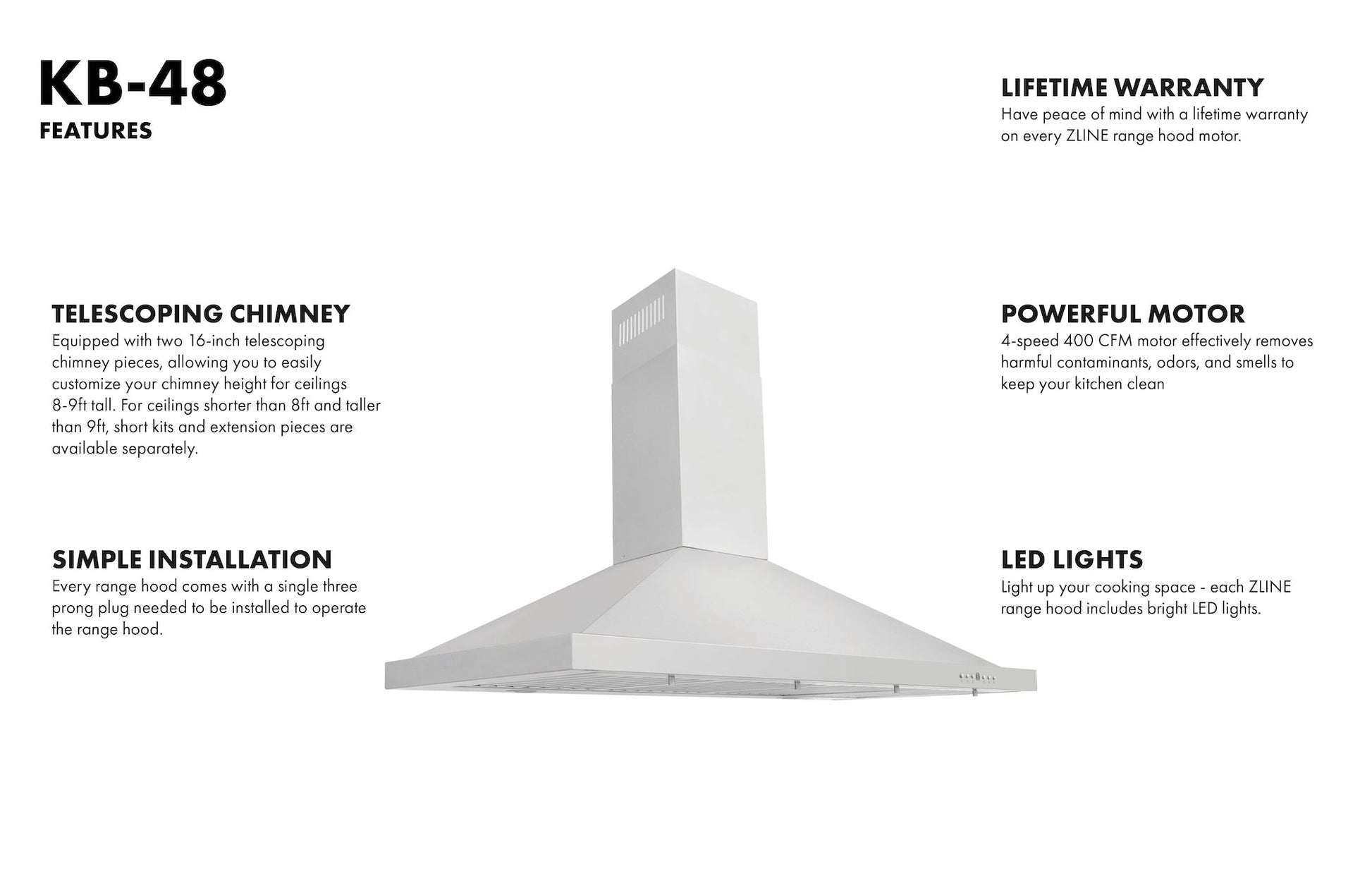

Key Features:

• Convertible Venting: Supports ducted and ductless installation (charcoal filters sold separately)

• 400 CFM Airflow: Provides effective ventilation for everyday cooking

• 4-Speed Fan Control: Adjustable airflow settings (120/240/320/400 CFM)

• Stainless Steel Construction: Made from 430-grade stainless steel for durability

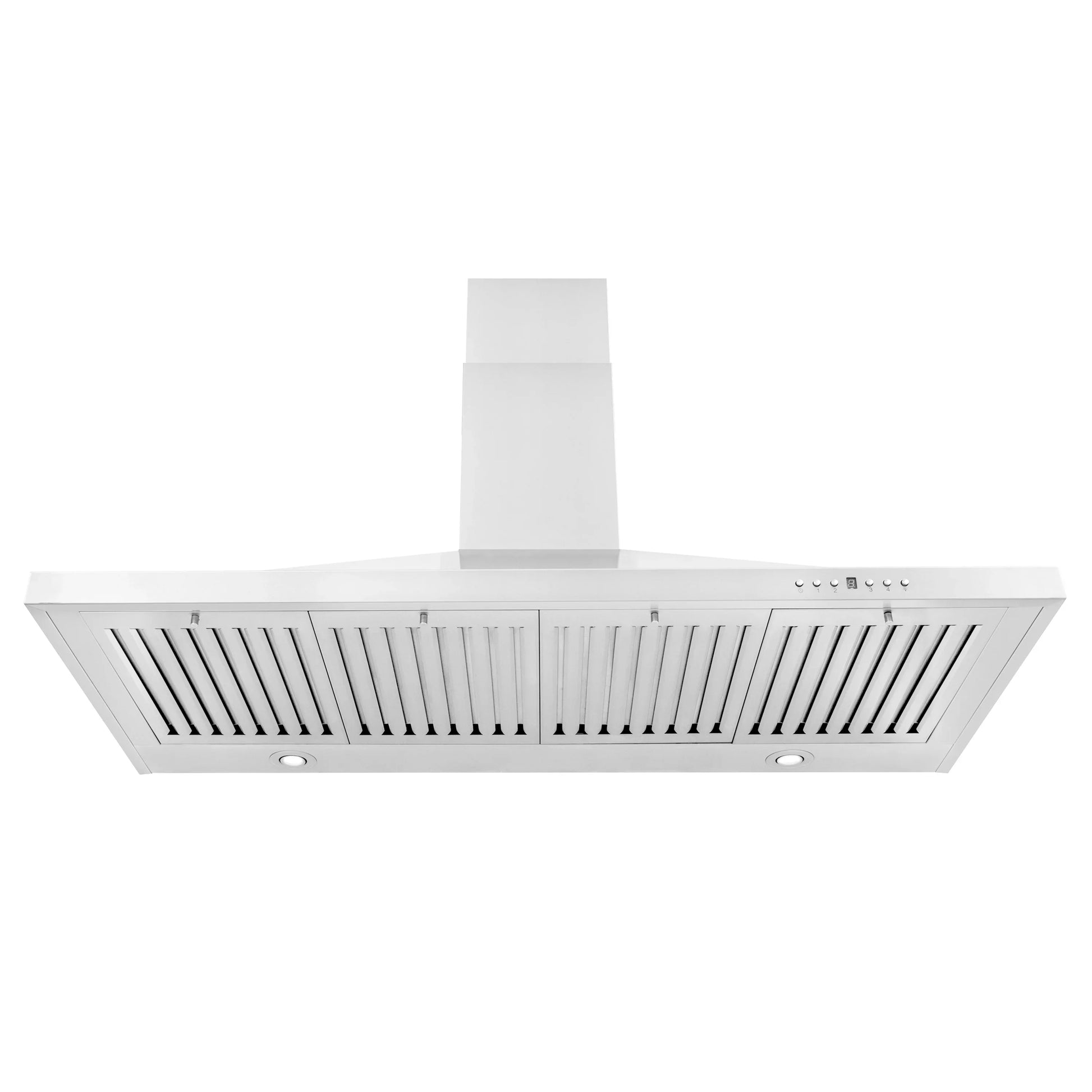

• Dishwasher-Safe Baffle Filters: Easy to clean and maintain

• LED Lighting: Includes two directional 3W LED lights for cooktop visibility

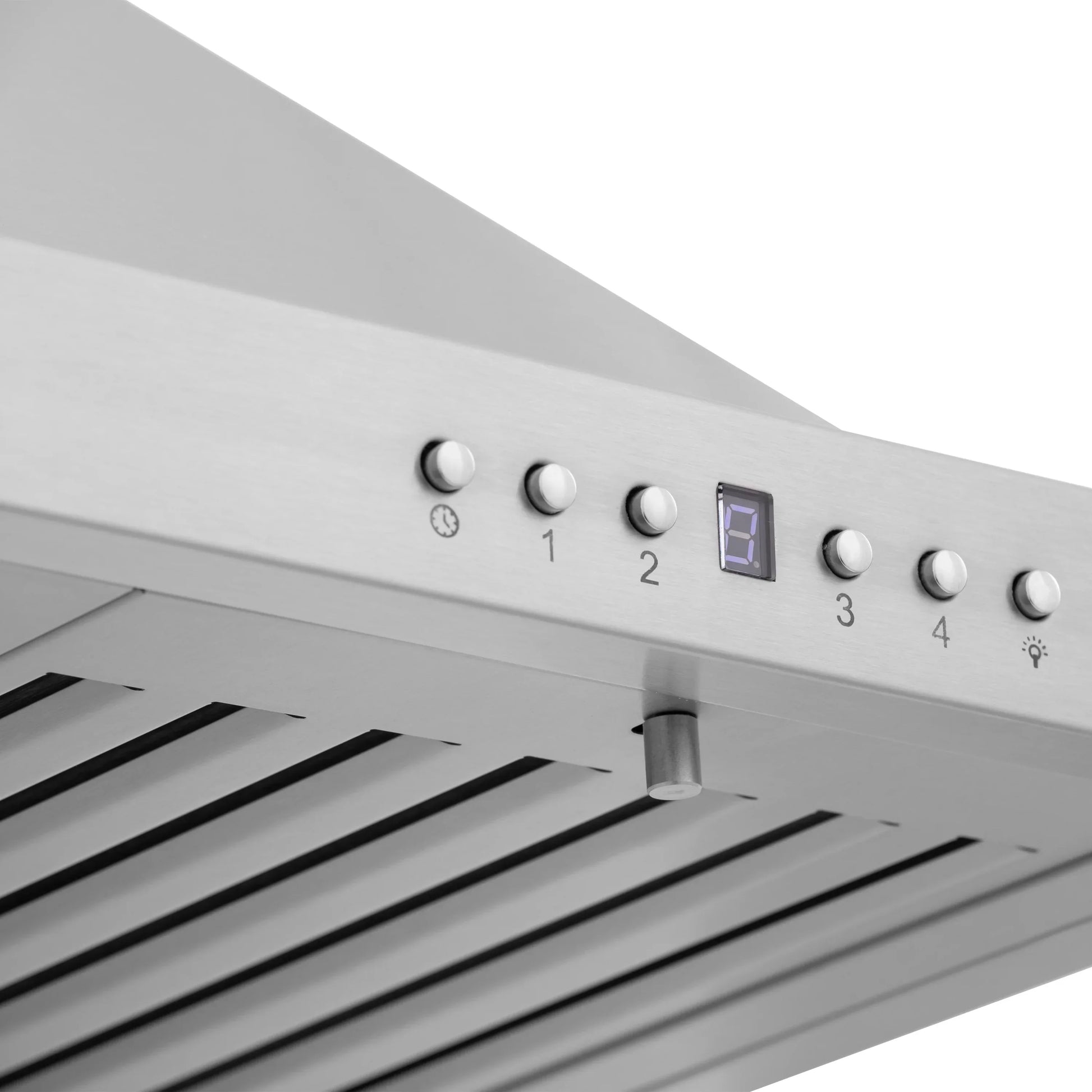

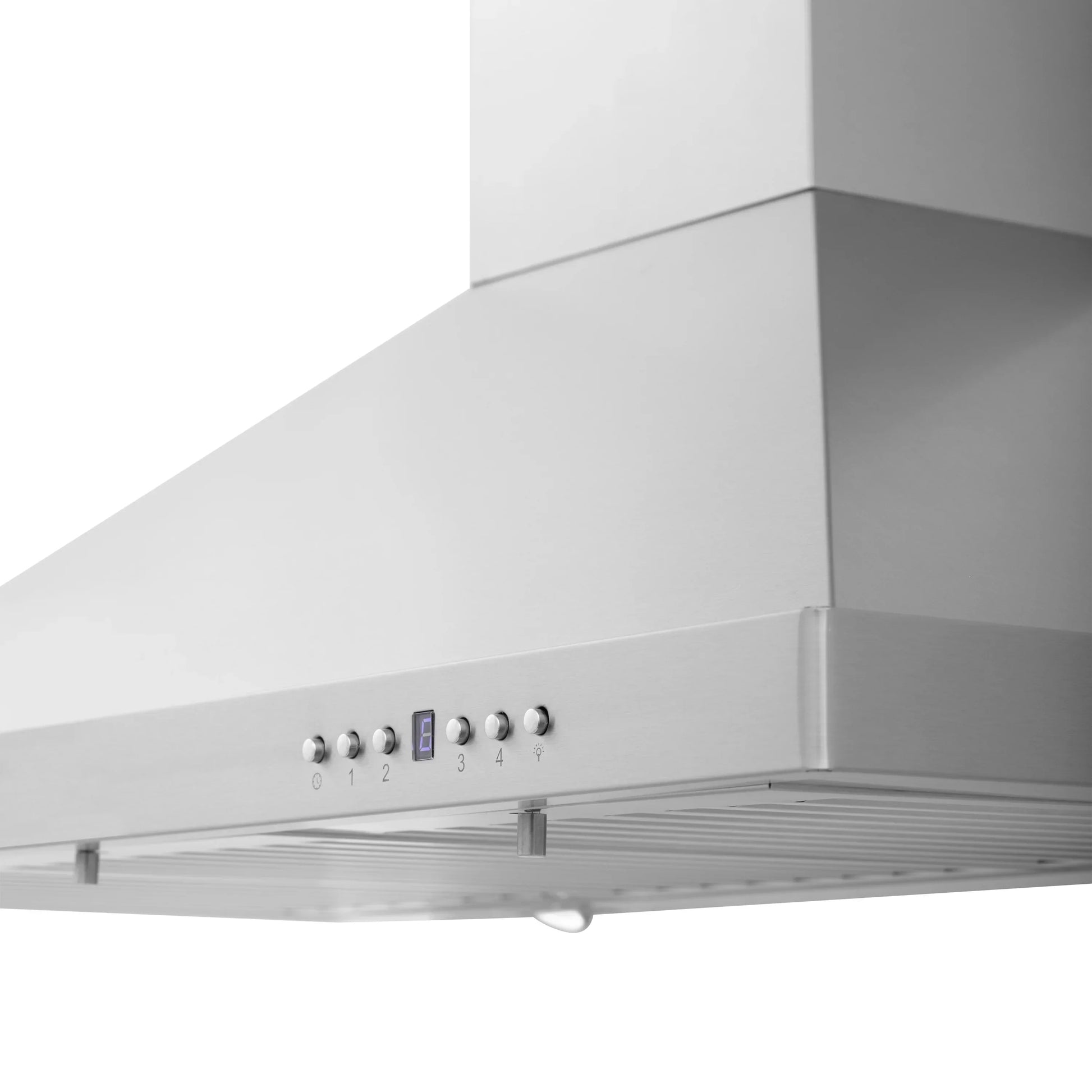

• LCD Control Panel: Features speed selection and timer with delayed shutoff

• Wall Mount Design: Designed for installation above standard kitchen ranges

Specifications

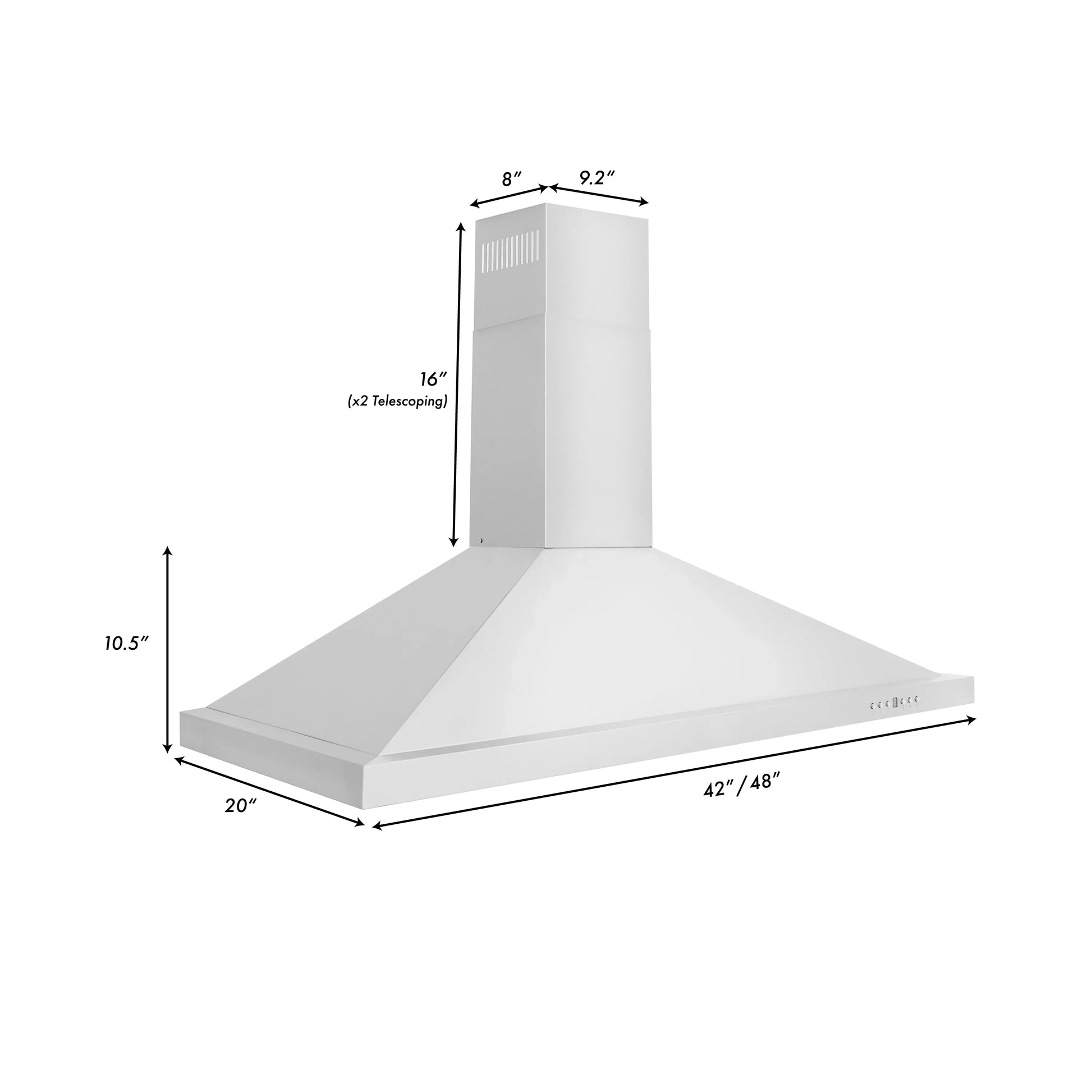

• Dimensions: 48" W x 19.7" D x 10.5" H

• Chimney Dimensions: 9.2" W x 8" D x 16" H (2 telescoping pieces included)

• Venting Size: 6" outlet (transition piece with backdraft damper included)

• Airflow: 120 / 240 / 320 / 400 CFM

• Noise Level: 20 / 29 / 34 / 41 dB

• Lighting: 2 x 3W LED lights

• Voltage: 110V / 60Hz

• Motor: 4-speed high-performance motor

• Control Type: LCD control panel with timer

• Mount Type: Wall mount

• Material: 21-gauge 430 stainless steel

• Filters: Stainless steel baffle filters (dishwasher safe)

• Warranty: 3-year parts warranty

• Certifications: ETL and UL listed

• Model Number: KB-48

Installation & Compatibility

• Ductless Option: Requires CF1 charcoal filters (sold separately)

• Ceiling Compatibility:

  • 8–9 ft: Standard installation (no extension required)

  • Below 8 ft: Short kit required (sold separately)

  • 9–10 ft: 1-piece extension required

  • 10–12 ft: 2-piece extension required

• Crown Moldings: Available separately (CM1–CM6 series)

• Indoor Use Only
