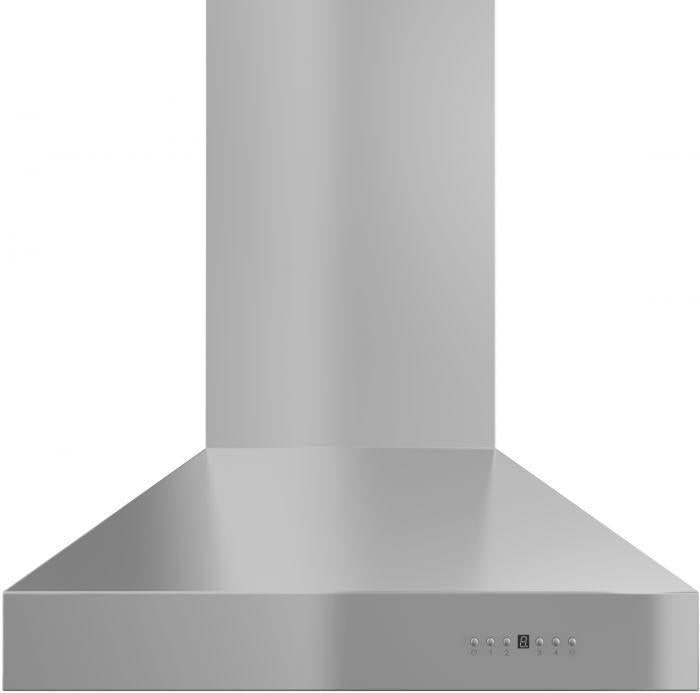

ZLINE 36 in Wall Mount Range Hood Ducted Stainless Steel 697-36

The ZLINE 697-36 is a 36-inch wall mount range hood designed for ducted ventilation, constructed from durable 430-grade stainless steel for long-lasting performance and a modern kitchen appearance. This model features a high-performance motor with multiple fan speeds to efficiently remove smoke, grease, and cooking odors.

Key Features:

• Airflow Performance: 4-speed fan control with airflow up to 400 CFM for effective ventilation
• Construction: Made from 430-grade stainless steel for durability and corrosion resistance

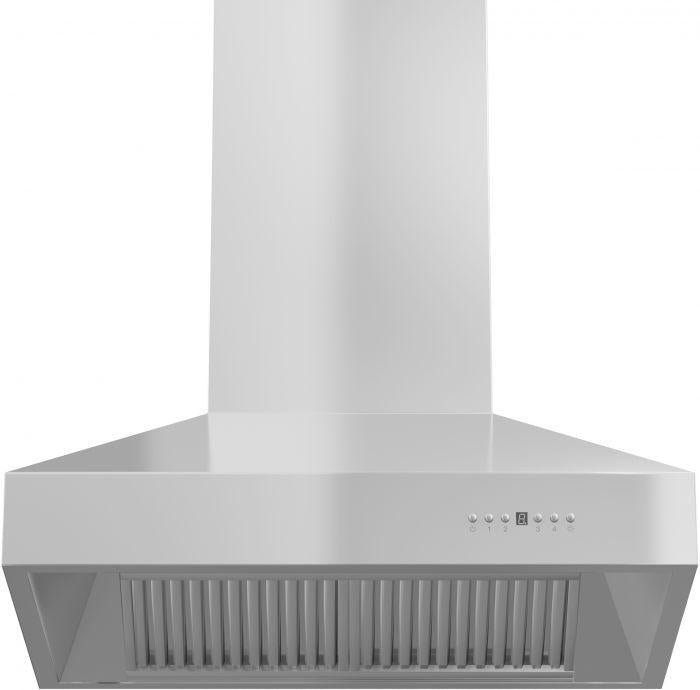

• Filters: Dishwasher-safe stainless steel baffle filters for easy cleaning and grease capture
• Lighting: Built-in LED lights to illuminate the cooking surface
• Noise Level: Operates at a maximum of approximately 56 dB at highest speed
• Chimney System: Includes two telescoping chimney pieces to fit standard ceiling heights

Installation & Compatibility

• Venting Type: Ducted only (not compatible with recirculation)

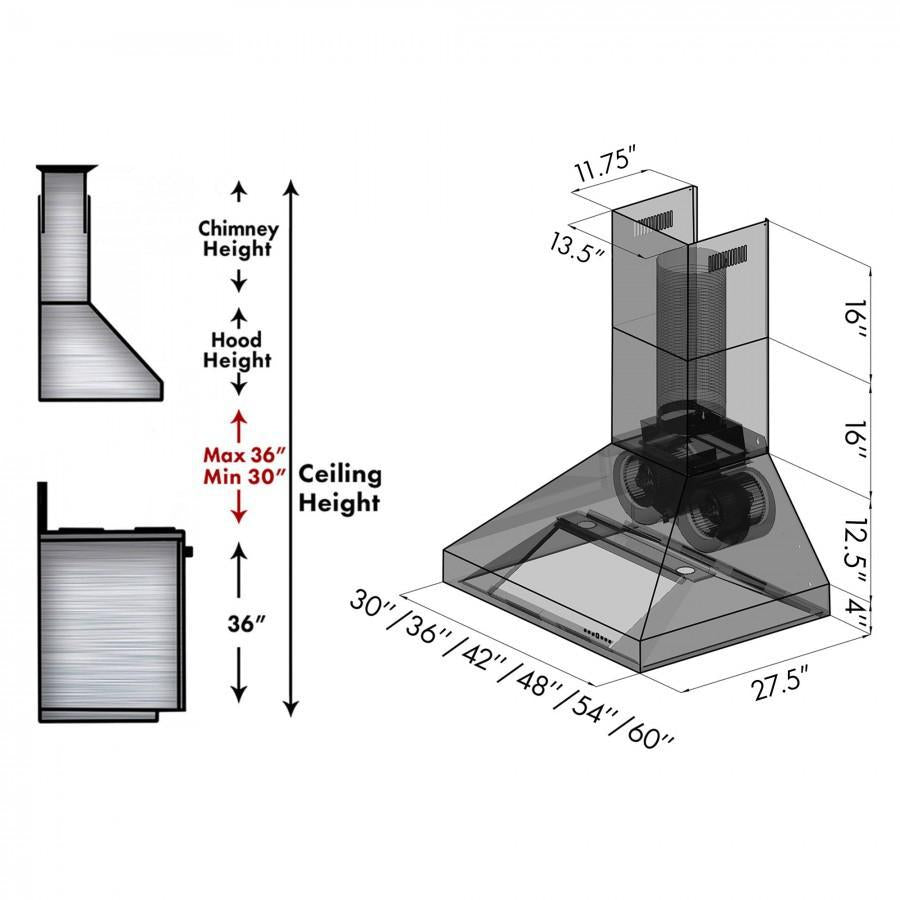

• Ceiling Height Compatibility:
  • 8 ft to 9 ft: Standard installation (no extension required)
  • Below 8 ft: Requires short kit (SK-455/476/477/667/697)
  • 9 ft to 10 ft: Requires 1-piece extension (1PCEXT-455/476/477/667/697)
  • 10 ft to 12 ft: Requires 2-piece extension (2PCEXT-455/476/477/667/697)
• Crown Moldings: Optional (sold separately) – CM1 to CM6 series compatible
• Outdoor Use: Not approved for outdoor installation

Additional Information

• Includes all necessary components for standard installation
• Designed to fit most kitchens with adjustable chimney configuration
• Available in multiple sizes: 30", 36", 42", 48", 54", and 60"
